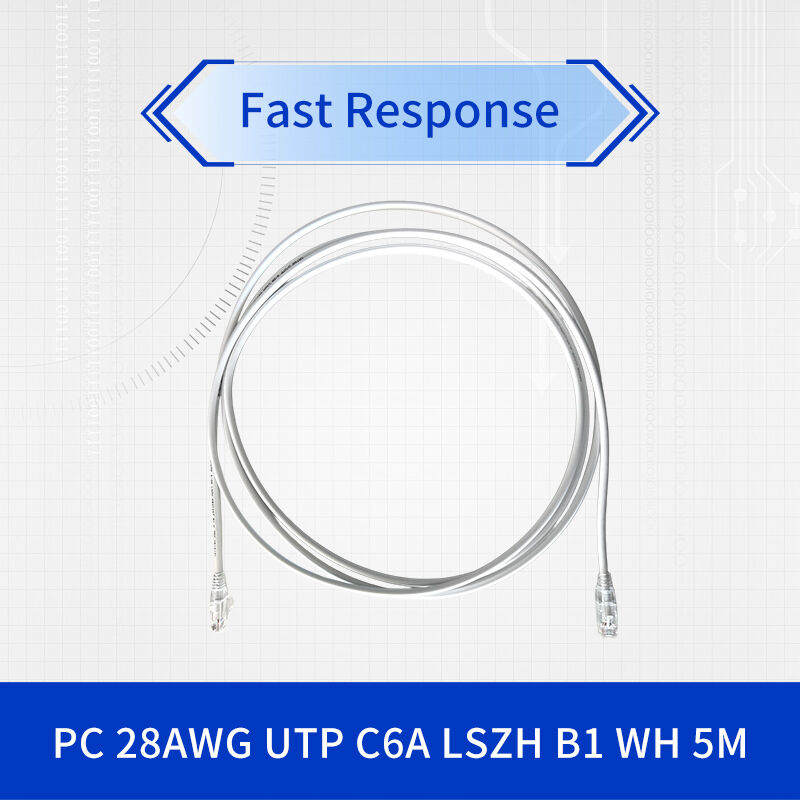

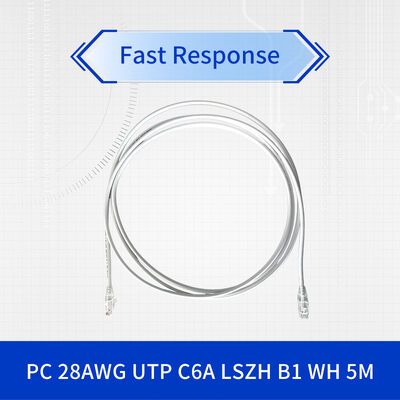

Cat 6A U/UTP Small Diameter RJ45 Cord, LSZH B1 5M

CommScope's CAT6A 28AWG U/UTP LSZH patch cord represents the pinnacle of network connectivity solutions, engineered to deliver exceptional performance in high-density environments. This advanced Cat 6A cable combines superior transmission capabilities with a reduced diameter design, making it the ideal choice for modern data centers, enterprise networks, and telecommunications infrastructure.

• 28AWG slim diameter for superior cable management
• LSZH (Low Smoke Zero Halogen) safety compliance
• Full Cat 6A performance up to 30 meters
• 750+ insertion cycle durability
• RoHS compliant environmental design

Featuring a compact 5.2mm diameter housing and 28AWG stranded conductors, this Cat 6A patch cord enables efficient cable management in high-density installations while maintaining full performance specifications.

Constructed with LSZH materials meeting B1 flammability rating and GB/T 31247 standards, ensuring minimal smoke and toxic emissions in case of fire while maintaining RoHS environmental compliance.

RJ45 connectors rated for 750+ insertion cycles with copper alloy contacts and polycarbonate housing, providing long-term reliability in demanding network environments.

This high-performance Cat 6A network cable complies with ANSI/TIA-568.2-D Category 6A specifications and ISO/IEC 11801 Class Ea requirements. The patch cord supports IEEE 802.3bt Type 4 Power over Ethernet applications and utilizes T568B wiring configuration for universal compatibility with network equipment.

Ideal for data centers, enterprise networks, telecommunications rooms, and high-density patching applications. The compact Cat 6A U/UTP design is particularly suited for environments where space optimization is critical while maintaining full 10GBASE-T performance. This network patch cord excels in structured cabling systems, server racks, and network switches where reliable high-speed connectivity is essential.

The 28AWG slim design reduces cable volume by approximately 25% compared to standard Cat 6A cables, enabling higher port density and improved airflow in network cabinets and enclosures.

LSZH construction minimizes toxic fumes and smoke emission in fire scenarios, providing crucial additional evacuation time and protecting sensitive electronic equipment from corrosive gases.

Maintains full 500 MHz bandwidth and 10 Gigabit Ethernet performance up to 30 meters, exceeding basic Cat 6A requirements while providing future-proof connectivity.

This high-performance Cat 6A network cable supports full 10GBASE-T performance up to 30 meters, making it ideal for data center and enterprise applications where shorter runs are common.

While 28AWG has higher resistance, this Cat 6A U/UTP cable is engineered to maintain full Category 6A performance specifications within its rated distance of 30 meters, providing identical performance to larger gauge cables in most patch applications.

The LSZH construction makes this network patch cord ideal for enclosed spaces with limited ventilation, including aircraft, ships, trains, data centers, and high-rise buildings where fire safety is a primary concern.

Yes, this Cat 6A patch cord is designed to support IEEE 802.3bt Type 4 PoE applications, delivering up to 90W of power while maintaining data transmission integrity.
