NVIDIA ConnectX-7 MCX755106AS-HEAT Dual-Port 400Gb/s NDR InfiniBand & 400GbE Smart Adapter Card
제품 상세 정보:
| 브랜드 이름: | Mellanox |
| 모델 번호: | MCX755106AS-HEAT (900-9X7AH-0078-DTZ) |
| 문서: | Connectx-7 infiniband.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1PCS |
|---|---|
| 가격: | Negotiate |
| 포장 세부 사항: | 외부 상자 |
| 배달 시간: | 목록을 기반으로 |
| 지불 조건: | 티/티 |
| 공급 능력: | 프로젝트/배치 별 공급 |
|
상세 정보 |
|||
| 모델 번호.: | MCX755106AS-HEAT (900-9X7AH-0078-DTZ) | 포트: | 2 포트 |
|---|---|---|---|
| 기술: | 인피니본 | 인터페이스 유형: | OSFP56 |
| 사양: | 16.7cm x 6.9cm | 기원: | 인도 / 이스라엘 / 중국 |
| 전송 속도: | 200gbe | 호스트 인터페이스: | gen3 x16 |
| 강조하다: | NVIDIA ConnectX-7 400Gb/s InfiniBand adapter,dual-port 400GbE network card,NDR InfiniBand smart adapter card |
||
제품 설명

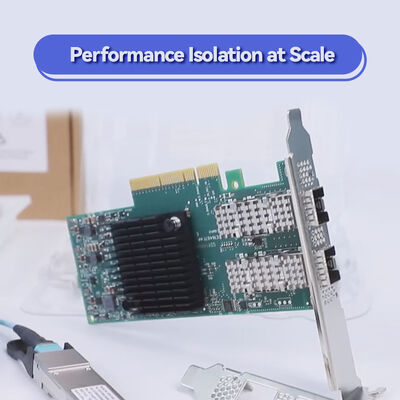

NVIDIA ConnectX-7 MCX755106AS-HEAT Dual-Port 400Gb/s NDR InfiniBand & 400GbE Smart Adapter Card
NVIDIA Original ConnectX-7 NDR 400Gb/s Dual-Port InfiniBand + Ethernet PCIe Gen 5.0
MPN: MCX755106AS-HEAT
The NVIDIA ConnectX-7 MCX755106AS-HEAT is a flagship dual-port smart network adapter delivering up to 400Gb/s per port (800Gb/s aggregate) for both InfiniBand (NDR) and Ethernet (400GbE) networks. Featuring a dual-port QSFP configuration, PCIe Gen 5.0 x16 host interface, and comprehensive hardware acceleration engines, this adapter is purpose-built for AI factories, scientific computing clusters, hyperscale data centers, and security-sensitive enterprise infrastructures requiring maximum density, ultra-low latency, and extreme throughput.
400Gb/s
Per port speed
NDR InfiniBand / 400GbE
Protocol support
800Gb/s
Aggregate bandwidth
PCIe 5.0 x16
128GB/s bidirectional
Hardware Security
IPsec/TLS/MACsec encryption
IEEE 1588v2
12ns accuracy
Product Overview
The NVIDIA ConnectX-7 family represents the next generation of RDMA network adapters, supporting both InfiniBand and Ethernet protocols at speeds up to 400Gb/s per port. The MCX755106AS-HEAT is a dual-port adapter delivering NDR (Next Data Rate) InfiniBand and 400GbE connectivity on both ports, built on PCIe Gen 5.0 technology for maximum host bandwidth.
ConnectX-7 introduces a comprehensive set of software-defined, hardware-accelerated networking, storage, and security capabilities. The dual-port configuration enables high-density compute nodes, redundant uplinks, or direct connections to multiple switches. Key innovations include inline IPsec/TLS/MACsec encryption offloads, advanced precision timing (IEEE 1588v2 Class C with 12ns accuracy), NVIDIA In-Network Computing engines, and NVMe-oF acceleration with GPUDirect support.
Key Features
- Dual-port 400Gb/s connectivity – 800Gb/s aggregate; NDR InfiniBand (IBTA Spec 1.5 compliant) and 400GbE support per port
- PCIe Gen 5.0 x16 host interface – Up to 128GB/s bidirectional bandwidth; backward compatible with PCIe Gen 4.0/3.0
- Hardware security offloads – Inline IPsec AES-GCM 128/256-bit, inline TLS AES-GCM 128/256-bit, inline MACsec AES-GCM 128/256-bit
- Platform security – Secure boot with hardware root-of-trust, secure firmware update, flash encryption, device attestation
- Advanced timing and synchronization – IEEE 1588v2 (any profile), G.8273.2 Class C, 12 nanosecond accuracy, line-rate hardware timestamp, SyncE, PTP-based packet pacing
- In-Network Computing acceleration – Collective operations offloads, NVIDIA SHARP support, rendezvous protocol offload, on-board memory
- GPUDirect RDMA and GPUDirect Storage – Direct GPU memory access for accelerated AI/ML workloads across both ports
- NVMe-oF offloads – NVMe over Fabrics target and initiator offloads, NVMe/TCP support
- RDMA with reliable transport – Extended Reliable Connected (XRC), Dynamically Connected Transport (DCT), on-demand paging (ODP)
- ASAP2 SDN acceleration – Open vSwitch offload, overlay network offload (VXLAN, GENEVE, NVGRE), programmable flexible parser
- Virtualization – SR-IOV, VirtIO acceleration, connection tracking (L4 firewall), flow mirroring, hierarchical QoS
- NVIDIA Multi-Host support – Connect up to 4 hosts to a single adapter (dependent on configuration)
- Redundancy and load balancing – Dual-port design enables link aggregation, failover, and multi-switch connectivity
Technology: In-Network Computing & Security Acceleration
ConnectX-7 elevates network intelligence with advanced offload engines that transform the network into a computational and security resource.
- In-Network Computing: Collective operations offload (MPI_Allreduce, etc.), NVIDIA SHARP, rendezvous offload, burst buffer offload
- Inline IPsec: AES-GCM 128/256-bit, IPsec over RoCE, line-rate encryption/decryption
- Inline TLS: AES-GCM 128/256-bit for secure application layer communication
- Inline MACsec: AES-GCM 128/256-bit for link-layer security
- Precision Timing: IEEE 1588v2 Class C (12ns accuracy), SyncE (G.8262.1), configurable PPS, time-triggered scheduling
- GPUDirect: RDMA and Storage – direct GPU memory access, bypassing CPU
Typical Deployments
- AI Factories and Large Language Model Training: Massive-scale distributed training with dual-port connectivity for north-south and east-west traffic, GPUDirect RDMA, and SHARP collective offloads.
- High Performance Computing (HPC): Scientific simulations, weather modeling, genomics requiring dual-port for high availability or multi-fabric connectivity.
- Secure Multi-Tenant Cloud Data Centers: Hardware-accelerated IPsec/TLS for zero-trust security with no CPU performance penalty, dual-port for redundant uplinks.
- NVMe-oF Storage Systems: High-performance shared storage with hardware offloads for NVMe/TCP and NVMe/RoCE, dual-port for storage controller redundancy.
- Telecom and Edge Computing: Precision timing (Class C) for 5G fronthaul and timing-sensitive infrastructure with redundant timing sources.
- Software-Defined Networking (SDN): ASAP2 acceleration for Open vSwitch with line-rate performance across both ports.
- Hyperscale Data Centers: Dual-port adapters for spine-leaf architectures, reducing number of adapters per server while maintaining redundancy.
Compatibility & Interoperability
- InfiniBand: Fully compatible with NVIDIA Quantum-2, Quantum-3 (when available), and legacy InfiniBand switches (NDR, HDR, EDR, FDR).
- Ethernet: Interoperable with 400GbE, 200GbE, 100GbE, 50GbE, 25GbE, 10GbE switches.
- PCIe: PCIe Gen 5.0 x16 – requires Gen 5.0 slot for full 400Gb/s per port performance; backward compatible with Gen 4.0 and Gen 3.0.
- CPU architectures: x86 (Intel/AMD), Arm, Power, GPU-accelerated platforms.
- Cabling: Passive copper DAC, active copper cables (ACC), active optical cables (AOC), optical transceivers – all with ESD protection.
Technical Specifications
| Parameter | Specification (MCX755106AS-HEAT) |
|---|---|
| Product Model | MCX755106AS-HEAT |
| Product Family | NVIDIA ConnectX-7 |
| Maximum Data Rate per Port | 400Gb/s (NDR InfiniBand or 400GbE) |
| Total Aggregate Bandwidth | 800Gb/s (2 x 400Gb/s) |
| Port Configuration | 2 ports (QSFP type - please confirm with ordering guide) |
| Host Interface | PCIe Gen 5.0 x16 (up to 128GB/s); compatible with Gen 4.0, 3.0 |
| InfiniBand Compliance | IBTA Specification 1.5, NDR/HDR/EDR/FDR |
| Ethernet Speeds Supported | 400/200/100/50/40/25/10/1 GbE |
| RDMA Support | Yes, with RoCE support |
| Transport Protocols | RC, UC, UD, XRC, DCT, Raw Datagram |
| Security Offloads | Inline IPsec (AES-GCM 128/256), inline TLS (AES-GCM 128/256), inline MACsec (AES-GCM 128/256) |
| Platform Security | Secure boot (hardware root-of-trust), secure firmware update, flash encryption, device attestation |
| Precision Timing | IEEE 1588v2 (any profile), G.8273.2 Class C, 12ns accuracy, SyncE (G.8262.1), PTP packet pacing |
| NVMe-oF Offloads | NVMe over Fabrics target/initiator, NVMe/TCP |
| Storage Protocols | SRP, iSER, NFS over RDMA, SMB Direct, T10-DIF signature handover |
| Virtualization | SR-IOV, VirtIO acceleration, connection tracking, flow mirroring, hierarchical QoS |
| Overlay Offloads | VXLAN, GENEVE, NVGRE encapsulation/decapsulation |
| ASAP2 SDN Acceleration | Open vSwitch offload, programmable flexible parser, header rewrite, hierarchical QoS |
| GPUDirect | GPUDirect RDMA, GPUDirect Storage |
| Multi-Host Support | NVIDIA Multi-Host (configuration dependent) |
| Remote Boot | InfiniBand, iSCSI, UEFI, PXE |
| Management | NC-SI, MCTP over SMBus/PCIe, PLDM (Monitor/Control/Firmware/Redfish/FRU), SPDM, SPI to flash, JTAG |
| Operating System Support | Linux (RHEL, Ubuntu), Windows, VMware ESXi, Kubernetes (in-box drivers for major OS) |
| Form Factor | Please confirm ordering information – HHHL, FHHL variants available |
| Standards Compliance | RoHS, IEEE 802.3bj/ba/by/ap, IEEE 1588v2, G.8273.2, G.8262.1 |
Note: Complete ordering information including specific form factor and connector type is available in the official NVIDIA ConnectX-7 user manuals. Please confirm exact specifications before ordering.
Why Choose ConnectX-7 MCX755106AS-HEAT
- Unmatched 400Gb/s per port throughput: Dual-port design delivers 800Gb/s aggregate for the most demanding AI and HPC workloads.
- PCIe Gen 5.0 readiness: Future-proof interface with 128GB/s host bandwidth – sufficient for dual 400Gb/s ports (requires efficient PCIe utilization).
- Zero-trust security without compromise: Inline IPsec/TLS/MACsec offloads encrypt all traffic at line rate on both ports with no CPU overhead.
- Industry-leading precision timing: 12ns accuracy, Class C compliant – ideal for 5G, finance, and distributed databases requiring redundant timing.
- Complete storage offload: NVMe-oF target and initiator acceleration reduces CPU load and improves storage latency across both ports.
- Redundancy and high availability: Dual-port design enables link aggregation, failover, and multi-switch connectivity for mission-critical deployments.
- Proven software ecosystem: Full driver support for Linux, Windows, VMware, Kubernetes, and all major HPC middleware.
Frequently Asked Questions
Q: What is the difference between MCX755106AS-HEAT and single-port ConnectX-7 adapters?
A: MCX755106AS-HEAT offers two independent 400Gb/s ports (800Gb/s aggregate), enabling redundant connections to two different switches or direct dual-fabric connectivity. Single-port versions like MCX755105AS-HEAT provide one 400Gb/s port for simpler topologies.
Q: Can both ports operate at full 400Gb/s simultaneously?
A: Yes, both ports can achieve line-rate 400Gb/s simultaneously. However, the PCIe Gen 5.0 x16 interface provides 128GB/s (approximately 1024Gb/s) bidirectional bandwidth, which supports the 800Gb/s aggregate transmit or receive with sufficient headroom.
Q: Does MCX755106AS-HEAT support both InfiniBand and Ethernet on each port independently?
A: Yes, ConnectX-7 adapters are VPI capable. Each port can be configured independently for InfiniBand or Ethernet, allowing mixed protocol deployments on the same adapter.
Q: What PCIe slot is required for full dual-port 400Gb/s performance?
A: A PCIe Gen 5.0 x16 slot is required for optimal performance. The adapter is backward compatible with PCIe Gen 4.0 x16, but aggregate throughput may be limited to approximately 400-500Gb/s due to host bandwidth constraints.
Q: What is the security advantage of inline offloads?
A: Inline IPsec/TLS/MACsec offloads encrypt and decrypt traffic directly on the adapter without CPU involvement, enabling full 400Gb/s secure networking on both ports with zero CPU penalty.
Q: What is the timing accuracy of IEEE 1588v2 on ConnectX-7?
A: ConnectX-7 achieves 12 nanosecond accuracy with G.8273.2 Class C compliance, suitable for the most demanding telecom and timing-sensitive applications across both ports.
Q: Does this adapter support GPUDirect across both ports?
A: Yes, ConnectX-7 fully supports GPUDirect RDMA and GPUDirect Storage on both ports, enabling direct GPU-to-GPU communication across multiple fabrics.
Installation & Handling Precautions
- ESD protection: Use grounded wrist straps and ESD-safe workstations when handling the adapter.
- PCIe Gen 5.0 signal integrity: Ensure server motherboard and slot meet Gen 5.0 signal quality requirements for optimal dual-port performance.
- Thermal management: Ensure adequate chassis airflow – dual-port ConnectX-7 adapters generate significant heat under full 800Gb/s aggregate load.
- Power requirements: PCIe slot must provide adequate power per PCIe CEM specifications for high-power operation. Verify server power delivery capability.
- Firmware updates: Keep adapter firmware current using NVIDIA Firmware Tools (MFT) for security patches and performance improvements.
Compatibility Matrix
| Platform / Switch Type | Compatibility | Notes |
|---|---|---|
| NVIDIA Quantum-2 / Quantum-3 InfiniBand switches | Full | NDR 400Gb/s, SHARP support on both ports |
| NVIDIA Spectrum-4 Ethernet switches | Full | 400GbE, RoCE, PTP timing on both ports |
| NVIDIA DGX H100 / DGX B200 systems | Full | GPUDirect RDMA and Storage across both ports |
| Standard PCIe Gen 5.0 servers (Dell, HPE, Supermicro, Lenovo, Cisco) | Full | Requires Gen 5.0 x16 slot for full speed |
| PCIe Gen 4.0 servers | Limited | Operates at Gen 4.0 speeds – sufficient for many single-port workloads |
Buyer Checklist
- Required per-port speed: 400Gb/s NDR – confirm network infrastructure supports NDR or 400GbE on both ports.
- Port count: Dual-port (MCX755106AS-HEAT) vs. single-port – determine redundancy or multi-fabric requirements.
- Host interface: Verify server has available PCIe Gen 5.0 x16 slot for maximum aggregate throughput.
- Protocol per port: InfiniBand, Ethernet, or mixed – adapter supports independent configuration.
- Security requirements: IPsec, TLS, or MACsec offload needs – confirm target use case across both ports.
- Timing requirements: PTP Class C (12ns) for telecom or financial applications – verify port-specific timing needs.
- Form factor: Confirm if HHHL or FHHL fits server chassis.
- Power and cooling: Verify server can provide sufficient power and cooling for dual-port operation.
- Cabling: Passive DAC (short reaches), active copper cables, AOC, or optical transceivers per port.
