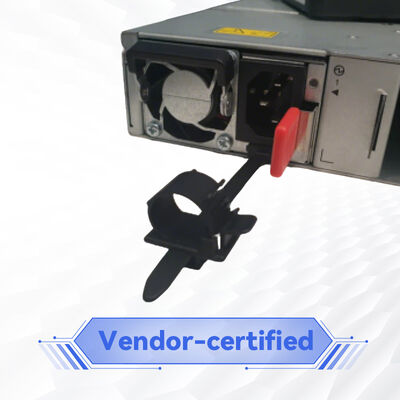

NVIDIA Q3400-RA 144-Port 800Gb/s XDR InfiniBand Spine Switch
제품 상세 정보:
| 브랜드 이름: | Mellanox |
| 모델 번호: | Q3400-RA (920-9B36F-00RX-8S0) |
| 문서: | q3200-ra-q3400-ra-xdr-800gb...al.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1PCS |
|---|---|
| 가격: | Negotiate |
| 포장 세부 사항: | 외부 상자 |
| 배달 시간: | 목록을 기반으로 |
| 지불 조건: | 티/티 |
| 공급 능력: | 프로젝트/배치 별 공급 |
|
상세 정보 |
|||
| 모델 번호.: | Q3400-RA 920-9B36F-00RX-8S0 | 전송 속도: | 800GB |
|---|---|---|---|
| 포트: | 72 | 기능: | LACP, 스택 가능, VLAN 지원 |
| 기술: | 인피니본 | 최대 속도: | XDR |
| 운송 패키지: | 포장 | 사양: | 43.6*433.2*590.6 mm |
| 등록 상표: | Mellanox | 기원: | 중국 |
| 강조하다: | NVIDIA InfiniBand spine switch,144-port high-speed network switch,800Gb/s Mellanox XDR switch |
||
제품 설명
NVIDIA Q3400-RA 144-Port 800Gb/s XDR InfiniBand Spine Switch
NVIDIA Quantum-3 XDR 800Gb/s Spine Optimized
Q3400-RA
144-Port XDR 800Gb/s InfiniBand Switch
Built for the largest AI superclusters. The Q3400-RA scales two-level fat-tree topologies beyond 10,000 GPUs with sub-microsecond latency.
115.2
Tb/s Aggregate
144
XDR 800Gb/s Ports
4U
Air Cooled • 8 PSUs
Product Overview
The NVIDIA Quantum-3 Q3400-RA is the industry's highest-density fixed-configuration InfiniBand switch, purpose-built for AI factories and exascale HPC systems. With 144 ports of 800Gb/s XDR connectivity in a 4U chassis, it eliminates the need for multiple spine tiers in large-scale leaf-spine architectures.
Each port operates at 800Gb/s bidirectionally, enabling a single Q3400-RA to connect up to 144 compute or storage nodes at wire speed. When paired with NVIDIA ConnectX-8 adapters, the switch delivers end-to-end 800Gb/s fabric performance.
Technology Deep Dive
The Q3400-RA is powered by the NVIDIA Quantum-3 ASIC, integrating 200Gb/s SerDes technology. Key innovations include:
- Adaptive Routing for congestion avoidance
- SHARPv3 in-network compute acceleration
- Performance isolation for multi-tenant AI clouds
- Optional router functionality for multi-site fabrics
Key Features
- 144 XDR Ports - 72 OSFP cages supporting 800Gb/s per port or 2x 400Gb/s per cage
- 115.2 Tb/s Throughput - Non-blocking switching capacity for massive parallel workloads
- SHARPv3 Support - In-network data reduction for collective operations, reducing job completion time
- Fabric Management Port - Dedicated FNM (OSFP) for NVIDIA UFM telemetry and out-of-band fabric orchestration
- Redundant Power - 8 hot-swappable 2000W PSUs with N+1 or N+N redundancy
- Ultra-Low Latency - Port-to-Port latency under 130ns
Compatibility Matrix
| Category | Compatible Products |
|---|---|
| Host Channel Adapters | NVIDIA ConnectX-8 (800Gb/s), ConnectX-7 (NDR 400Gb/s) |
| Passive Cables | OSFP to OSFP DAC (1-3m), OSFP to 2x OSFP splitter |
| Active Cables | OSFP AOC (up to 100m), MPO-to-OSFP active optical modules |
| Management Software | NVIDIA UFM Platform, UFM AI, MLNX-OS |
Technical Specifications
| Parameter | Q3400-RA Specification |
|---|---|
| Port Configuration | 144 XDR 800Gb/s ports (72 OSFP cages) |
| Switching Capacity | 115.2 Tb/s aggregate, non-blocking |
| Form Factor | 4U rackmount, air-cooled, C2P airflow |
| Management Ports | FNM (OSFP), 2x RJ45 (10/100/1000), Console RJ45, USB 2.0 |
| Power Supplies | 8x hot-swappable, 2000W AC (200-240V), Platinum efficiency |
| Cooling Fans | 10x hot-swappable fan units, front-to-rear (C2P) |
| Dimensions (HxWxD) | 7.0" x 17.24" x 33.5" (177.8 x 438 x 850 mm) |
| Weight (full loaded) | Approx. 60 kg (132 lbs) |
| Operating Temperature | 0°C to 35°C (derated with optical modules) |
Verify all specifications with your sales contact prior to ordering.
Buyer Checklist
- Rail Kit: Required (NVIDIA P/N: 930-9SKIT-00L0-00B for 700-800mm depth)
- Airflow: Confirm C2P (Connector-to-Power) matches your hot aisle location
- Power Cords: Not included -- order region-specific C19-C20 cables separately
- Licensing: UFM or advanced features may require separate license
Service & Support
- ✓ 1-year manufacturer warranty (extendable to 3 or 5 years)
- ✓ Firmware and software update access
- ✓ 24/7 technical support ticket system
- ✓ Advance replacement for defective units (with support contract)
- ✓ On-site deployment engineering (available for volume orders)
Related Products
- • NVIDIA ConnectX-8 800Gb/s Adapter Cards
- • NVIDIA Quantum-2 NDR (400Gb/s) Switch Series
- • OSFP 800Gb/s DAC and Active Optical Cables
- • NVIDIA UFM Software Platform
Related Technical Guides
Deploying XDR Fabrics for 10k+ GPU Clusters • Understanding NVIDIA UFM for AI Observability • C2P vs P2C Airflow in High-Density Switches • SHARPv3 In-Network Compute Use Cases
Frequently Asked Questions
Q: Is the Q3400-RA backward compatible with NDR (400Gb/s) or HDR (200Gb/s) equipment?
A: Yes. The Quantum-3 ASIC supports multi-speed operation. Ports can operate at 400Gb/s or 200Gb/s when connecting to legacy adapters or switches.
Q: Can I use the Q3400-RA as a leaf switch?
A: While possible, it is primarily optimized as a spine switch due to its high 144-port radix. For leaf roles, consider lower-density Quantum-3 models.
Q: What is the typical power draw at full load?
A: Approximately 2.9 kW with passive copper cables. This can increase to 6-7 kW depending on active optical module usage and temperature conditions.
Q: Does the Q3400-RA support in-service software upgrades?
A: Yes, with redundant management planes. Please check the specific MLNX-OS version for upgrade procedures.
Important Precautions
This product is for professional data center installation only. Use only NVIDIA-approved rail kits and power cords. The C2P airflow (connector-to-power) requires the cold aisle to face the port side. Warranty and support terms vary by region. Specifications may change without notice.
