CommScope 24-Port 1U Rack-Mount Unshielded Patch Panel with UL 94 V-0 Compliance
제품 상세 정보:
| 브랜드 이름: | commscope |
| 모델 번호: | 760237040 |
| 문서: | 760237040 _ CPP...24.pdf |
|
상세 정보 |
|||
| 제품 시리즈: | SL 시리즈 | 차폐 식: | 차폐되지 않은 |
|---|---|---|---|
| 포트 수: | 24 | 랙 유닛 높이: | 1U |
| 패널 스타일: | 똑바로 | 기본 자료: | 열가소성 및 강철 |
| 강조하다: | 24-Port Patch Panel,1U Rack-Mount Distribution Module,UL 94 V-0 Network Panel |
||
제품 설명

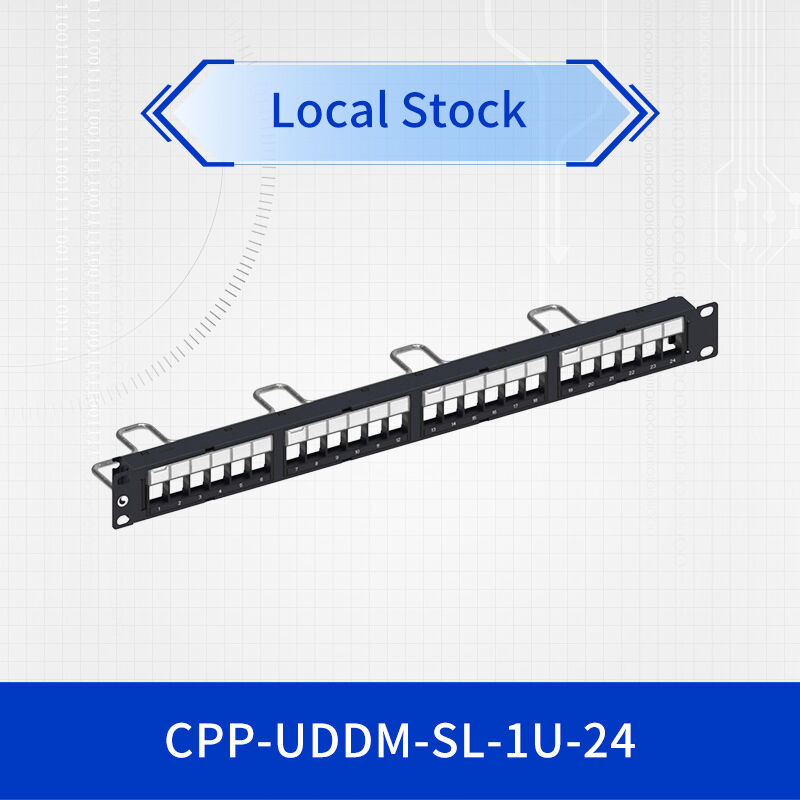

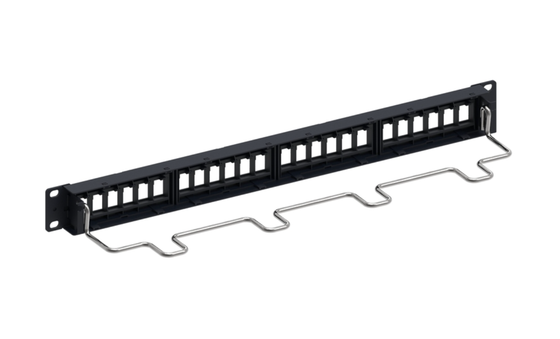

CPP-UDDM-SL-1U-24
CommScope SL Series Unshielded Discrete Distribution Module Panel
High-Value Network Infrastructure Solution
The CommScope CPP-UDDM-SL-1U-24 represents a premium 24-port unshielded patch panel engineered for high-density network environments. This 1U rack-mount solution delivers exceptional performance in data centers, server rooms, and telecommunications closets while maintaining compliance with global standards. The SL Series unshielded patch panel offers reliable connectivity and streamlined cable management for enterprise networks requiring robust infrastructure components.
- High-Density Design: 24 RJ45 ports in a single 1U space maximize rack utilization
- Universal Compatibility: Works with standard unshielded cabling systems
- Robust Construction: High-impact thermoplastic and powder-coated steel housing
- Global Compliance: Meets UL, cUL, RoHS, and REACH regulatory requirements
- Optimized Cable Management: Integrated design reduces clutter and improves airflow
Product Characteristics
- Unshielded discrete distribution module panel with 24 ports
- Straight panel style for standard EIA 19-inch racks
- Black finish with high-impact, flame-retardant thermoplastic construction
- Operating temperature range: -10°C to +60°C
- UL 94 V-0 flammability rating for enhanced safety
- Eco-friendly packaging without single-use plastics
Technology & Standards Compliance
This unshielded patch panel complies with international safety and quality standards including RCM, UL, and cUL certifications. The product is designed, manufactured and distributed under ISO 9001:2015 quality management systems. Environmental compliance includes RoHS, UK-RoHS, China-RoHS, and REACH-SVHC requirements, ensuring responsible manufacturing practices and material selection.
Working Principle
The SL Series unshielded patch panel functions as a centralized termination point for network cables, organizing and distributing connections between active equipment and work area outlets. The discrete distribution module design provides individual port isolation to minimize crosstalk and maintain signal integrity. The straight-through design ensures minimal signal degradation while supporting high-speed data transmission across standard twisted-pair cabling systems.
Application Scenarios
This 24-port patch panel is ideal for enterprise network environments including data centers, server rooms, telecommunications closets, and office network infrastructure. The unshielded discrete distribution module panel supports various deployment scenarios from small business networks to large-scale enterprise installations. Typical applications include horizontal cross-connections, equipment room terminations, and consolidation points in structured cabling systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Unshielded Patch Panel |
| Port Configuration | 24 RJ45 Ports |
| Rack Units | 1U |
| Dimensions (HxWxD) | 44.45 x 482.6 x 119.38 mm |
| Operating Temperature | -10°C to +60°C |
| Flammability Rating | UL 94 V-0 |
| Color | Black |
Competitive Advantages
The CPP-UDDM-SL-1U-24 unshielded patch panel delivers superior value through its high-port density, robust construction, and global compliance. Compared to alternative solutions, this SL Series patch panel offers enhanced durability with its high-impact thermoplastic and powder-coated steel construction. The optimized 1U footprint maximizes rack space utilization while maintaining accessibility for cable management. The comprehensive regulatory compliance ensures trouble-free deployment across multiple regions and applications.
Service & Support
CommScope provides comprehensive technical support and service for all SL Series products. The unshielded discrete distribution module panel is backed by CommScope's global support network with documentation, installation guidance, and technical assistance available. Products are shipped in eco-friendly packaging without single-use plastics, reflecting CommScope's commitment to environmental responsibility.
Frequently Asked Questions
What cable types are compatible with this patch panel?
This unshielded patch panel is designed for use with standard unshielded twisted pair (UTP) cabling systems, supporting various categories including Cat 5e, Cat 6, and Cat 6A.
Does this panel include the modules?
No, the CPP-UDDM-SL-1U-24 unshielded patch panel is supplied without modules, allowing flexibility to select compatible modules based on specific application requirements.
What safety certifications does this product hold?
This SL Series patch panel complies with UL, cUL, and RCM safety standards, with additional environmental compliance including RoHS, UK-RoHS, China-RoHS, and REACH-SVHC requirements.
What is the operating temperature range?
The unshielded discrete distribution module panel operates reliably in temperatures from -10°C to +60°C, with storage tolerance from -40°C to +70°C.
Installation & Usage Notes
When installing this unshielded patch panel, ensure proper grounding according to local electrical codes. Maintain minimum bend radii for connected cables to prevent performance degradation. The SL Series patch panel should be installed in controlled environments within specified temperature ranges. Regular inspection and maintenance are recommended to ensure optimal performance of the unshielded discrete distribution module panel over its service life.
