NPC6ASZDB Shielded Cat6E Patch Cable - High-Speed 10Gbps Ethernet Cord with RJ45 Connectors
제품 상세 정보:
| 브랜드 이름: | Commscope |
| 모델 번호: | NPC6ASZDB-WT003M |
| 문서: | NPC6ASZDB.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1개 |
|---|---|
| 가격: | Negotiate |
| 포장 세부 사항: | 상자 |
| 배달 시간: | 목록을 기반으로 |
| 지불 조건: | 티/티 |
| 공급 능력: | 프로젝트/배치 별 공급 |
|
상세 정보 |
|||
| ANSI/TIA 카테고리: | 6A | 케이블 유형: | S/FTP(차단됨) |
|---|---|---|---|
| 도체 유형: | 다중 가닥 트위스트 | 커넥터 a: | RJ45 플러그 |
| 커넥터 특성, 커넥터 A: | 기준 | 커넥터 b: | RJ45 플러그 |
| 연결 특성, 커넥터 B: | 기준 | 길이: | 3m |
| 강조하다: | Shielded Cat6E Ethernet cable,10Gbps RJ45 patch cord,High-speed Cat6E network cable |
||
제품 설명

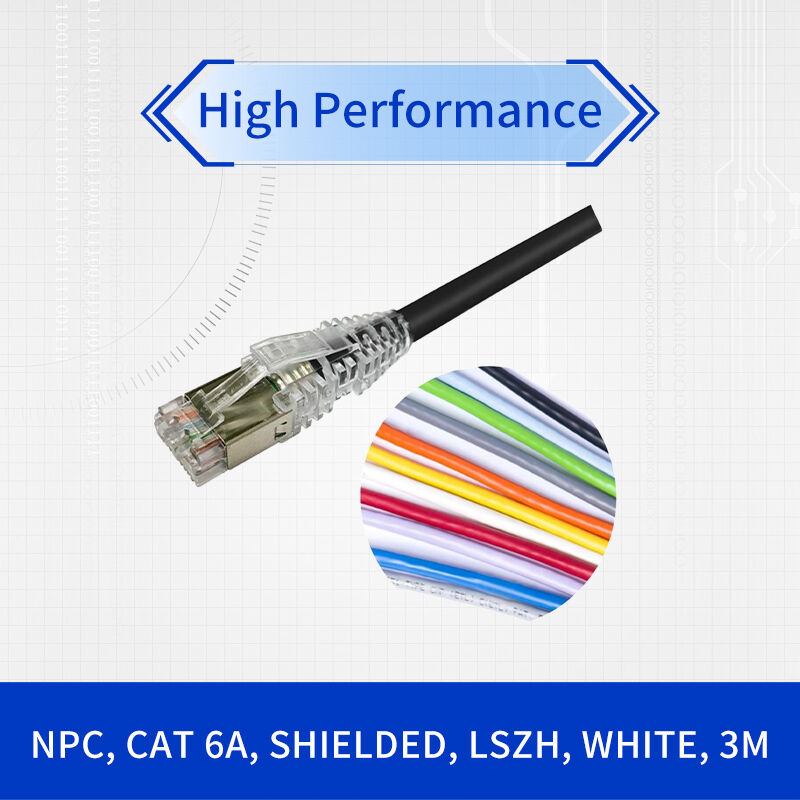

NPC6ASZDB Shielded Cat6E Patch Cable - High-Speed 10Gbps Ethernet Cord with RJ45 Connectors
NPC6ASZDB Cat6E Shielded Network Patch Cord - Premium Ethernet Connectivity
Performance Highlights
- Enhanced EMI/RFI shielding technology
- 10Gbps data transmission capability
- Low smoke zero halogen safety jacket
- High-density deployment optimized
- Industrial-grade durability
- Global compliance certifications
Technical Specifications
Physical Properties
Cable Type: SFTP Cat6E
Jacket Material: LSZH
Diameter: 5.84mm
Colors: 9 options available
Performance Data
Data Rate: Up to 10Gbps
Frequency: 500MHz
Voltage Rating: 300V
Impedance: 100Ω ±15%
Applications & Deployment
This high-performance Cat6E patch cord is engineered for critical network infrastructure including:
- Data Centers: Server connectivity and switch interconnections
- Enterprise Networks: Workstation to wall plate connections
- Industrial Automation: Factory floor networking
- Healthcare Facilities: Medical equipment connectivity
- Educational Institutions: Classroom and lab deployments
Compliance & Certifications
| Standard | Description | Compliance |
|---|---|---|
| ANSI/TIA-568.2-D | Category 6A Performance | Fully Compliant |
| ISO/IEC 11801 | Class EA Specifications | Fully Compliant |
| UL 1863 | Safety Certification | Certified |
| IEEE 802.3b1 | Type 4 Compatibility | Compatible |
Installation Guidelines
Critical Installation Parameters
- Maintain minimum bend radius of 25mm during installation
- Ensure proper grounding for shielded systems
- Use appropriate cable management to avoid stress on connectors
- Verify termination with certified test equipment
- Follow local electrical codes and regulations
