Mellanox OSFP Optical Transceiver 800Gb/s 2xSR4 with 850nm Wavelength and MPO-12/APC Connectors MMA4Z00-NS
제품 상세 정보:
| 브랜드 이름: | Mellanox |
| 모델 번호: | 멜라녹스 광 전송부 MMA4Z00-NS |
| 문서: | MMA4Z00-NS.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1개 |
|---|---|
| 가격: | Negotiate |
| 포장 세부 사항: | 외부 상자 |
| 배달 시간: | 목록을 기반으로 |
| 지불 조건: | 티/티 |
| 공급 능력: | 프로젝트/배치 별 공급 |
|
상세 정보 |
|||
| 상태: | 새롭고 독창적입니다 | 유효성: | 재고 |
|---|---|---|---|
| 기술: | 인피니본 및 이더넷 | 최대 속도: | 800GB/s |
| 길이: | 50m | 온도 범위: | 0 ° C ~ +70 ° C |
| 이름: | Mellanox 광학 트랜시버 MMA4Z00-NS 호환 800G 2XSR4 OSFP PAM4 850NM 50M Infiniband NDR 트랜시버 모듈 | 핵심 단어: | Mellanox 광학 송수신기 |
| 강조하다: | 2xSR4 OSFP Optical Transceiver,850nm Mellanox Optical Transceiver,MPO-12/APC 800G Optical Transceiver |
||
제품 설명
- ✓ 800Gb/s aggregate bandwidth (2*400Gb/s)
- ✓ Dual independent transceiver engines
- ✓ Multimode SR8 with 50-meter reach
- ✓ Dual MPO-12/APC optical connectors
- ✓ Automatic InfiniBand/Ethernet protocol detection
- ✓ Advanced thermal management with finned-top design
The NVIDIA MMA4Z00-NS represents a breakthrough in high-density optical connectivity, delivering 800Gb/s aggregate bandwidth through an innovative twin-port OSFP design. This advanced optical transceiver incorporates two independent 400Gb/s transceiver engines within a single form factor, effectively doubling port density while maintaining exceptional performance characteristics.
Engineered for demanding data center environments, this network component supports both InfiniBand and Ethernet protocols automatically, providing unparalleled flexibility for heterogeneous computing infrastructures. The transceiver's sophisticated design enables seamless integration with Quantum-2 and Spectrum-4 switch platforms, making it an essential component for modern high-performance computing and AI workloads.
- 800Gb/s total bandwidth (2*400Gb/s ports)
- Multimode SR8 with 850nm VCSEL technology
- Dual MPO-12/APC optical connectors
- 50-meter maximum reach on OM4 fiber
- 17W maximum power consumption
- 2.0W low-power sleep mode
- Hot-pluggable OSFP form factor
- Finned-top design for enhanced cooling
- Class 1 laser safety certification
- RoHS compliant construction
- CMIS 4.0 management interface
- Operating case temperature: 0°C to +70°C
| Parameter | Specification |
|---|---|
| Product Model | MMA4Z00-NS |
| Total Bandwidth | 800Gb/s (2*400Gb/s) |
| Fiber Type | Multimode SR8 |
| Wavelength | 850nm VCSEL |
| Maximum Reach | 50m (OM4), 30m (OM3) |
| Connectors | 2*MPO-12/APC |
| Power Consumption | 17W max, 2W low-power mode |
| Form Factor | OSFP with finned-top |
| Protocol Support | InfiniBand & Ethernet (auto-detection) |

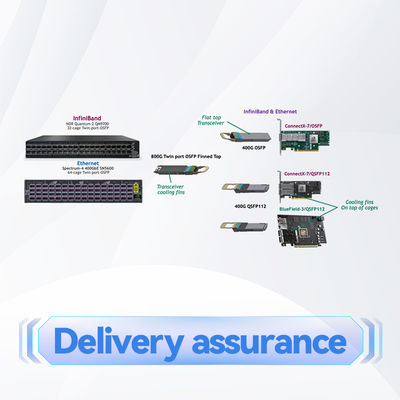

This transceiver is specifically designed for NVIDIA Quantum-2 InfiniBand and Spectrum-4 Ethernet switches. The finned-top design is required for proper thermal management in air-cooled switch environments, while a flat-top variant (MMA4Z00-NS-FLT) is available for liquid-cooled systems and DGX H100 platforms.

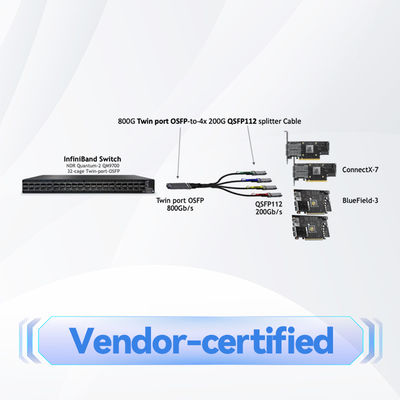

The transceiver supports both straight and 1:2 splitter multimode fiber cables with MPO-12/APC connectors. Straight cables maintain 400Gb/s per port, while splitter cables enable 200Gb/s connectivity to multiple endpoints. Both cables in a twin-port configuration must be the same type (either both straight or both splitters).
The transceiver firmware detects whether it's installed in an InfiniBand or Ethernet switch and automatically configures the appropriate protocol. This eliminates the need for separate part numbers for different networking environments and simplifies inventory management.
