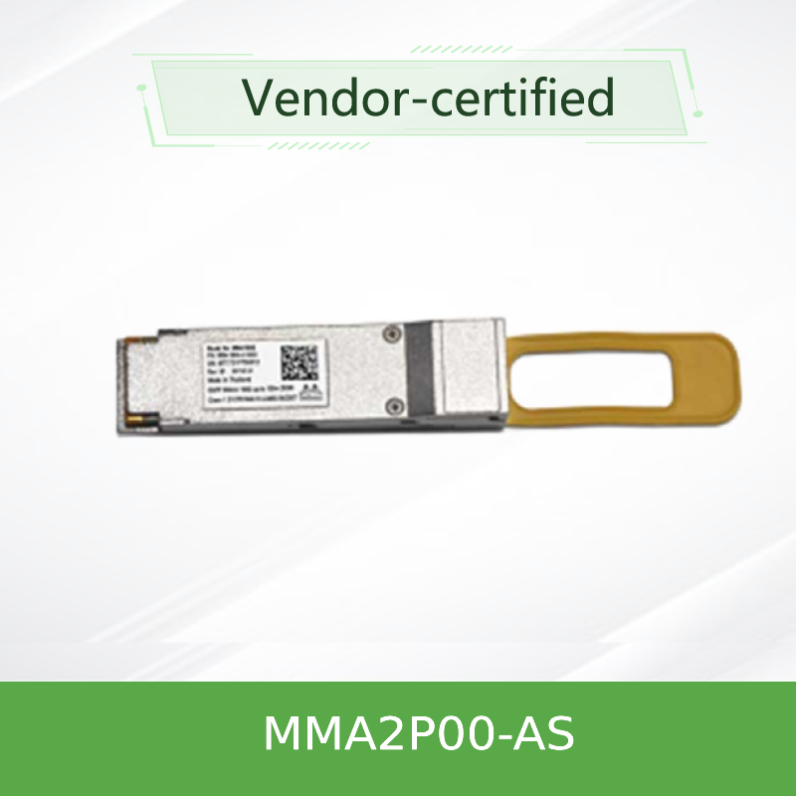

Mellanox Optical Transceiver MMA2P00-AS with 200Gb/s Bandwidth MPO-12 Connectors and OM4 Fiber Support

• ✓ High-Density Connectivity: Dual-port design delivers 200Gb/s aggregate bandwidth in compact QSFP56 form factor
• ✓ Advanced Optics: SR4 multimode technology with 100m reach on OM4 fiber infrastructure
• ✓ Intelligent Operation: Automatic protocol detection for both InfiniBand and Ethernet environments
• ✓ Power Efficient: Optimized thermal design with advanced power management capabilities

The NVIDIA MMA2P00-AS represents a significant advancement in optical transceiver technology, delivering exceptional port density and performance for modern data center environments. This sophisticated network component provides dual-port 100Gb/s connectivity within a standard QSFP56 form factor, effectively doubling the port capacity compared to traditional single-port transceivers.

Engineered for reliability and performance, this optical transceiver supports high-speed data transmission across multimode fiber infrastructure, making it an ideal solution for cost-effective data center interconnects. The device's intelligent design ensures seamless integration with existing network infrastructure while providing the bandwidth necessary for demanding applications.

• 200Gb/s total bandwidth (2*100Gb/s)
• QSFP56 dual-port form factor
• SR4 multimode optical technology
• 100-meter maximum reach (OM4)
• 850nm VCSEL transmitter technology
• Dual MPO-12 optical connectors
• Hot-pluggable design
• Digital diagnostic monitoring
• Low power consumption
• RoHS compliant construction
• Class 1 laser safety
• Operating temperature: 0°C to 70°C

The MMA2P00-AS leverages advanced 50G-PAM4 modulation across four parallel channels per port, delivering exceptional signal integrity and spectral efficiency. This network component incorporates sophisticated digital diagnostics that provide comprehensive monitoring of operational parameters including optical power levels, temperature, voltage, and laser bias currents.

The transceiver's innovative firmware architecture enables automatic protocol detection, seamlessly adapting to either InfiniBand or Ethernet switch environments without manual configuration. This optical transceiver represents a significant evolution in connectivity solutions, providing the foundation for next-generation data center architectures while maintaining compatibility with existing infrastructure.

This transceiver is compatible with NVIDIA Spectrum and Mellanox switch platforms that support QSFP56 form factor. The dual-port functionality requires specific switch support for proper operation and bandwidth aggregation.

The MMA2P00-AS requires MPO-12 to MPO-12 multimode fiber cables for proper operation. Both OM3 and OM4 fiber types are supported, with maximum reach of 70m and 100m respectively.

Yes, the dual-port design enables flexible deployment options including breakout configurations for connectivity to multiple endpoints. Each port operates independently, providing deployment flexibility for various network architectures.
