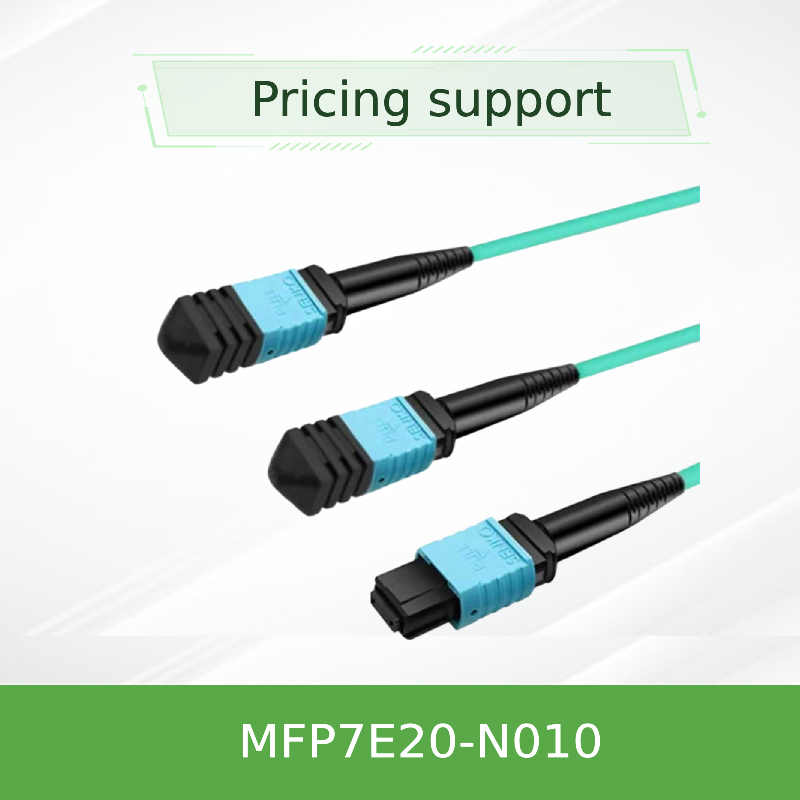

NVIDIA MFP7E20-N010 10m MPO-12/APC Multimode Fiber Cable 400G NDR/Ethernet Type B Crossover for OSFP Switches
제품 상세 정보:
| 브랜드 이름: | Mellanox |
| 모델 번호: | MFP7E20-N010 |
| 문서: | MFP7E20-Nxxx.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1개 |
|---|---|
| 가격: | Negotiate |
| 포장 세부 사항: | 외부 상자 |
| 배달 시간: | 목록을 기반으로 |
| 지불 조건: | 티/티 |
| 공급 능력: | 프로젝트/배치 별 공급 |
|
상세 정보 |
|||
| 모델 번호.: | MFP7E20-N010 | 재료 모양: | 둥근 와이어 |
|---|---|---|---|
| 허용 인장 강도: | 1000N <10000N | 인증: | RoHS, CE, ISO9001, VDE, CCC |
| 외피 재료: | PVC | 길이: | 10m |
| 데이터 속도: | 400GB/s | 기원: | 인도 / 이스라엘 / 중국 |
| 강조하다: | NVIDIA 10m multimode fiber cable,400G Ethernet MPO-12 fiber cable,OSFP switches crossover fiber cable |
||
제품 설명
NVIDIA MFP7E20-N010 10m MPO-12/APC Multimode Fiber Cable
400G NDR/Ethernet Type B Crossover for OSFP Switches
Critical Performance Advantages
- Optimized for 400G NDR Networks: Engineered to deliver full bandwidth for next-generation 400GbE and NDR InfiniBand infrastructures
- Premium Signal Integrity: MPO-12/APC connectors with 8-degree angled polish achieve high return loss (≥35 dB)
- Plug-and-Play Crossover Design: Factory-terminated Type B cable enables direct connection between transceivers
- Durable & Safe Construction: Flexible aqua-colored LSZH jacket with riser-rated (OFNR) safety
- Certified Ecosystem Compatibility: Fully tested for NVIDIA Mellanox ecosystem including switches and ConnectX-7 solutions
Product Overview
The NVIDIA MFP7E20-N010 is a 10-meter passive multimode fiber optic cable with MPO-12/APC connectors configured as Type B crossover. Purpose-built for linking 400G NDR and Ethernet transceivers in modern switches, network adapters, and DPUs.
Core Product Characteristics
- Interface: Dual MPO-12/APC (Female), angle-polished connectors
- Cable Length: 10 meters
- Fiber Specification: 50/125 µm Multimode OM4 (Aqua jacket)
- Active Channels: 8 fibers (4 for transmit, 4 for receive)
- Wiring Scheme: Type B (Crossover)
- Optical Performance: Insertion Loss ≤ 0.354 dB; Return Loss ≥ 35 dB
- Physical Build: 3.0 mm diameter, minimum bend radius of 30 mm
Technical Standards & Compliance
Advanced optical engineering ensures performance in demanding environments with MPO-12/APC connectors minimizing reflectance at 400G speeds.
- Connector Standard: IEC 61754-7 (MPO family)
- Performance & Reliability: Telcordia GR-1435
- Laser Safety: Class I per IEC 60825-1 and FDA 21 CFR 1040
- Safety Approvals: CB Scheme, cTUVus, CE Mark
- EMC Compliance: CE, FCC Class A, ICES-003, VCCI
Operational Principle
The Type B crossover topology ensures transmit (Tx) lasers from one transceiver align perfectly with receive (Rx) photodetectors on the connected device. APC polish scatters reflected light away from the source, preserving signal clarity.
Primary Deployment Scenarios
- Intra-Rack Connectivity: Interconnecting top-of-rack switches or linking switches to high-performance servers
- High-Density Compute Clusters: Forming fabric between GPU servers and NVLink switches in AI/HPC environments
- Storage Area Networks (SAN): Connecting storage arrays to switching fabric in flash-based storage
- Network Edge Aggregation: Consolidated racks at network edge requiring 400G performance
Detailed Specifications
| Parameter | Specification |
|---|---|
| Product Model | MFP7E20-N010 |
| Description | MPO12/APC to MPO12/APC, Multimode Fiber Cable |
| Length | 10 meters |
| Fiber Type / Jacket Color | OM4 Multimode / Aqua |
| Connector Type | MPO-12, Angled Polish (APC), Female |
| Maximum Data Rate Support | 400 Gb/s per port (NDR/400GbE) |
| Insertion Loss (Max) | ≤ 0.354 dB |
| Return Loss (Min) | ≥ 35 dB |
Available Length Variants
| Ordering Part Number | Length | Best For |
|---|---|---|
| MFP7E20-N003 | 3m | Ultra-short reach, within the same chassis |
| MFP7E20-N010 | 10m | Intra-rack and adjacent rack connections |
| MFP7E20-N020 | 20m | Extended intra-row reach |
| MFP7E20-N030 | 30m | Maximum OM4 reach for 400G NDR |
Competitive Advantages
- Optimized for NDR Ecosystem: Specifically tuned and tested for NVIDIA's NDR platform
- Superior Optical Quality: APC polish provides superior return loss over UPC connectors
- Ready-to-Deploy Reliability: Factory tested with verified performance metrics
- Future-Proof Design: Supports current 400G standards and future speed advancements
- Enhanced Data Center Safety: LSZH jacket limits toxic smoke emission in fire events
Service & Support
Comprehensive support structure ensures deployment success with NVIDIA standard warranty, prompt shipment from extensive inventory, and dedicated technical expertise.
Frequently Asked Questions
Can I use this cable to connect a 400G OSFP switch port to two separate 200G QSFP56 server ports?
No, this is a point-to-point cable. For breakout configurations, dedicated MPO-to-2xQSFP56 cables are required.
No, this is a point-to-point cable. For breakout configurations, dedicated MPO-to-2xQSFP56 cables are required.
Is cleaning the connectors necessary before installation?
Absolutely. Contamination is the leading cause of optical link failures. Always use approved optical connector cleaners.
Absolutely. Contamination is the leading cause of optical link failures. Always use approved optical connector cleaners.
Installation & Handling Guidelines
Note: Adhering to these precautions ensures optimal performance and longevity.
- Compatibility Verification: Confirm transceivers use MPO-12/APC interfaces
- Environmental Limits: Operate within 0°C to 70°C temperature range
- Bend Radius Management: Never bend tighter than 30 mm radius
- ESD Awareness: Use ESD wrist strap when handling transceivers
- Regulatory Use: Class A digital device intended for commercial settings
