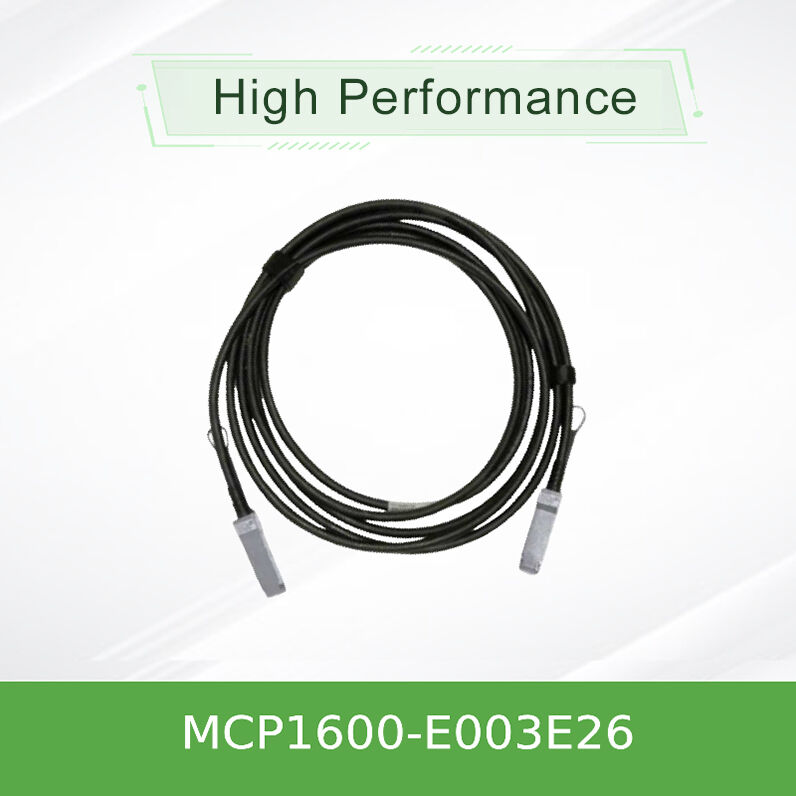

Mellanox MCP1600-E003E26 100Gb/s QSFP28 Direct Attach Copper Cable
제품 상세 정보:
| 브랜드 이름: | Mellanox |
| 모델 번호: | MCP1600-E003E26 |
| 문서: | PB_MCP1600-E0xxEyy_100Gbps_...AC.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1개 |
|---|---|
| 가격: | Negotiate |
| 포장 세부 사항: | 외부 상자 |
| 배달 시간: | 목록을 기반으로 |
| 지불 조건: | 티/티 |
| 공급 능력: | 프로젝트/배치 별 공급 |
|
상세 정보 |
|||
| 유효성: | 재고 | 보증: | 1년 |
|---|---|---|---|
| 상태: | 신규 및 원본 | 기술: | 인피니본 |
| 유형: | Mellanox AOC 케이블 | 케이블 길이: | 3 미터 |
| 이름: | Mellanox DAC 케이블 MCP1600-E003E26 IB EDR 100Gb/s 4x 25G-NRZ QSFP28 LSZH 3m 26AWG Infiniband 네트워크 케이블 | 예어: | Mellanox DAC 케이블 |
| 강조하다: | Mellanox 100Gb/s QSFP28 cable,Direct attach copper cable with warranty,Mellanox MCP1600-E003E26 DAC cable |
||
제품 설명
Mellanox MCP1600-E003E26 100Gb/s QSFP28 Direct Attach Copper Cable
High-performance passive Direct Attach Copper (DAC) cable designed for 100Gb/s InfiniBand EDR and Ethernet applications, providing reliable, low-latency connectivity for data center environments.
Key Characteristics
- High-Speed Data Rate: Supports aggregate data rates of up to 100 Gb/s (4x25 Gb/s lanes)
- Passive & Power-Efficient: Requires no signal retiming, consuming less than 0.1W
- Hot-Pluggable: Safe insertion and removal without powering down systems
- Superior Signal Integrity: Bit Error Rate (BER) better than 10⁻¹⁵ with Mellanox systems
- Durable & Eco-Friendly: LSZH jacket and Lead-Free, Halogen-Free PCB
- Comprehensive Management: Integrated EEPROM with SFF-8636 compliant I²C interface
Technology & Standards
Compliant with SFF-8685 (QSFP28 form factor) and SFF-8636 (management). Designed for 100Gb/s InfiniBand EDR and 100GbE Ethernet protocols with controlled 100Ω differential impedance for optimal signal integrity.
Application Scenarios
Ideal for high-performance computing, enterprise data centers, cloud infrastructure, and storage area networks:
- Interconnecting top-of-rack switches to leaf or spine switches
- Connecting servers with Mellanox ConnectX-4/5 adapters to EDR switches
- Building high-bandwidth clusters for AI and machine learning
- Establishing short-reach links within or between adjacent racks
Specifications
| Parameter | Specification |
|---|---|
| Model / Alias | MCP1600-E003E26 (mq9700) |
| Interface / Form Factor | QSFP28 to QSFP28 |
| Data Rate | 100 Gb/s (4x25 Gb/s) |
| Cable Type | Passive Direct Attach Copper (DAC) |
| Length | 3 meters |
| Wire Gauge (AWG) | 26 AWG |
| Operating Temperature | 0°C to 70°C |
| Power Consumption | < 0.1 W |
| Compatibility | InfiniBand EDR, 100GbE; Mellanox Switches & Adapters |
Product Family
| Part Number | Length | AWG | Cable Diameter |
|---|---|---|---|
| MCP1600-E00AE30 | 0.5m | 30 | 7.1 mm |
| MCP1600-E001E30 | 1m | 30 | 7.1 mm |
| MCP1600-E01AE30 | 1.5m | 30 | 7.1 mm |
| MCP1600-E002E30 | 2m | 30 | 7.1 mm |
| MCP1600-E003E26 | 3m | 26 | 9.4 mm |
| MCP1600-E004E26 | 4m | 26 | 9.4 mm |
| MCP1600-E005E26 | 5m | 26 | 9.4 mm |
Advantages
- Cost Savings: Lower purchase price per port
- Power Efficiency: Near-zero power draw reduces OPEX
- Low Latency: Passive transmission ensures minimal signal delay
- Robustness & Simplicity: No delicate optics, easier deployment
- Guaranteed Performance: Rigorous testing ensures reliability
Service & Support
Backed by a 1-year limited hardware warranty with comprehensive support services:
- Rapid Delivery: Large inventory for fast fulfillment
- 24/7 Technical Consultation: Expert support for integration
- Global Supply Chain: Consistent availability of genuine products
Frequently Asked Questions
Q: Is this cable compatible with non-Mellanox switches?
A: While designed for optimal performance with Mellanox equipment, it may work with other vendors' compatible ports. Full functionality is assured only with Mellanox systems.
Q: What is the maximum reliable distance for this passive DAC?
A: The 3m model is reliable for in-rack and adjacent rack connections. For longer distances, active optical solutions are recommended.
Q: Does the cable require any drivers or software configuration?
A: No. It is a plug-and-play passive component that automatically configures via EEPROM.
Q: What does the alias mq9700 refer to?
A: mq9700 is an alternative product identifier used for this specific 3m Mellanox QSFP28 DAC cable.
Handling Guidelines
- Bending Radius: Maintain minimum single bend radius ≥47mm and repeated bend radius ≥94mm
- Operating Environment: 0°C to 70°C, 5-85% relative humidity non-condensing
- Electrostatic Discharge (ESD): Handle with standard ESD precautions
- Compatibility Verification: Confirm switch/network card port compatibility before purchase
- Installation: Ensure full insertion and secure latch engagement
