NVIDIA MCA4J80-N005 800Gb/s OSFP Active Copper Cable – 5m Twin-Port ACC for InfiniBand NDR
제품 상세 정보:
| 브랜드 이름: | Mellanox |
| 모델 번호: | MCA4J80-N005 (980-9I602-00N005) |
| 문서: | MCA4J80-Nxxx.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1PCS |
|---|---|
| 가격: | Negotiate |
| 포장 세부 사항: | 외부 상자 |
| 배달 시간: | 목록을 기반으로 |
| 지불 조건: | 티/티 |
| 공급 능력: | 프로젝트/배치 별 공급 |
|
상세 정보 |
|||
| 유효성: | 재고 | 보증: | 1년 |
|---|---|---|---|
| 상태: | 신규 및 기존 | 기술: | 인피니본 |
| 유형: | Mellanox DAC 케이블 | 케이블 길이: | 5미터 |
| 이름: | Mellanox DAC 케이블 액티브 구리 케이블 IB 트윈 포트 NDR 800GB/S OSFP 5 미터 MCA4J80-N005 | 예어: | Mellanox DAC 케이블 |
| 강조하다: | NVIDIA OSFP Active Copper Cable,800Gb/s InfiniBand NDR cable,5m Twin-Port ACC cable |
||
제품 설명

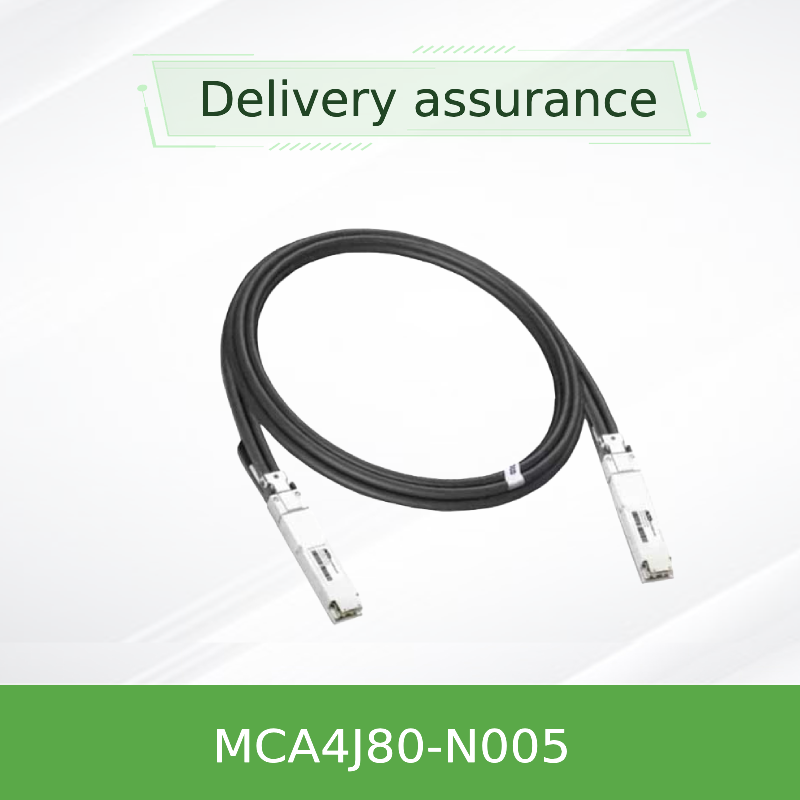

NVIDIA MCA4J80-N005 800Gb/s OSFP Active Copper Cable

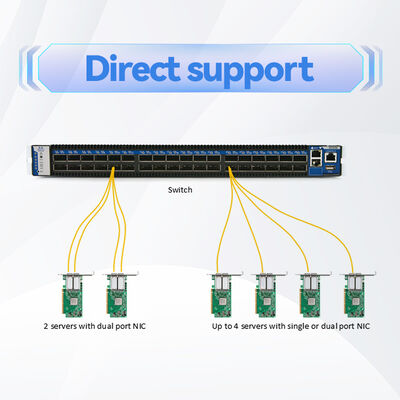

The NVIDIA MCA4J80-N005 is a 5-meter active copper cable (ACC) featuring a twin-port OSFP connector on one end and a 2x400Gb/s twin-port OSFP connector on the other. Designed for NVIDIA Quantum-2 InfiniBand and Spectrum-4 Ethernet switches, this ACC integrates pre-emphasis equalizer ICs to extend reach up to 5 meters while maintaining ultra-low latency and just 1.5W power per end.
800 Gb/s
Aggregate bandwidth
2x400G
Full duplex
1.5W
Power per end
5m
Maximum length
Product Overview

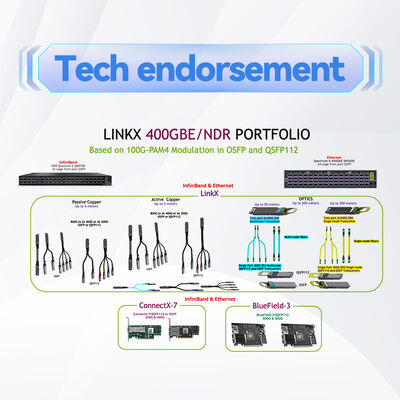

The NVIDIA MCA4J80 series represents a new class of active copper cables (ACC) that bridge the gap between passive DACs and optical solutions. The MCA4J80-N005 uses integrated equalizer ICs at each end to compensate for signal degradation over longer copper runs, enabling 800Gb/s aggregate bandwidth at distances up to 5 meters with latency nearly as low as passive DACs.
Key Features
- 800Gb/s aggregate data rate – Twin-port OSFP to 2x400Gb/s OSFP configuration
- Active Copper Cable (ACC) – Integrated pre-emphasis equalizer ICs extend reach to 5 meters
- Ultra-low latency – Significantly lower than AOCs, nearly matching passive DAC performance
- Low power consumption – Just 1.5W maximum per end
- 5 meter length – 26AWG wire gauge, 8.9mm cable diameter
- Operating case temperature – 0°C to 70°C; storage -40°C to 85°C
- LSZH (Low Smoke Zero Halogen) jacket – RoHS compliant, Lead-free, Halogen-free PCB
- Hot-pluggable OSFP connectors – Finned top standard; flat top and flat-to-finned variants available
- Automatic protocol detection – Supports InfiniBand NDR and Ethernet 800GbE
- SFF-8636 compliant I²C management interface – EEPROM for product identification and configuration
Technical Specifications
| Parameter | Specification (MCA4J80-N005) |
|---|---|
| Product Model | MCA4J80-N005 |
| Cable Type | Active Copper Cable (ACC) with equalizer ICs |
| Data Rate | 800Gb/s aggregate (2x400Gb/s) |
| Form Factor | OSFP to OSFP (twin-port to twin-port) |
| Length | 5 meters (±50mm tolerance for length ≥2m) |
| Wire Gauge | 26AWG (2x8 pairs) |
| Cable Diameter | 8.9 ±0.03 mm |
| Modulation | 8 lanes of 100G-PAM4 per port |
| Supply Voltage (Vcc) | 3.135V – 3.465V (typical 3.3V) |
| Power Consumption | 1.5W maximum per end |
| Operating Case Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |

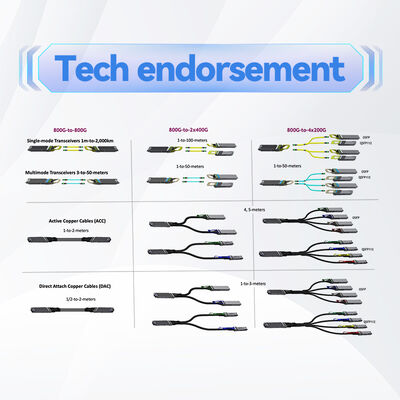

Selection Guide & Ordering Information
| Part Number | Length | Connector Type | AWG | Description |
|---|---|---|---|---|
| MCA4J80-N003 | 3m | Finned to finned | 30AWG | Active copper cable, 800Gb/s, OSFP twin-port |
| MCA4J80-N004 | 4m | Finned to finned | 30AWG | Active copper cable, 800Gb/s, OSFP twin-port |
| MCA4J80-N005 | 5m | Finned to finned | 26AWG | Active copper cable, 800Gb/s, extended reach |
| MCA4J80-N003-FLT | 3m | Flat to flat | 30AWG | For DGX H100 Cedar systems |
| MCA4J80-N003-FTF | 3m | Flat to finned | 30AWG | Switch (finned) to DGX H100 (flat) |
Compatibility
| NVIDIA Platform | Port Type | Compatibility Status | Recommended Variant |
|---|---|---|---|
| Quantum-2 QM9700 / QM9790 | OSFP twin-port (finned) | Fully qualified | Standard finned-top |
| Spectrum-4 SN5600 | OSFP 800G (finned) | Fully qualified | Standard finned-top |
| DGX H100 Cedar | OSFP flat-top cage | Qualified | -FLT or -FTF variant |
| ConnectX-7 OSFP Adapter | OSFP | Compatible up to 400G per port | Standard finned-top |
Frequently Asked Questions

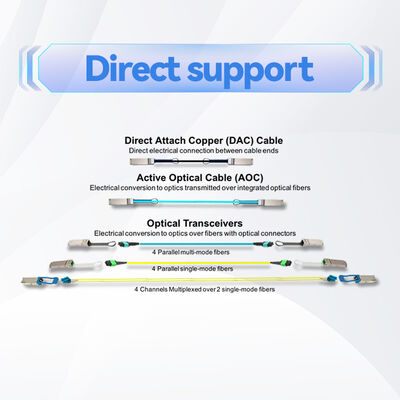

Q: What is the difference between ACC and passive DAC?
A: ACC adds low-power equalizer ICs at each end to compensate for signal loss, enabling longer reaches (5m vs. 2m for passive) while maintaining low latency and moderate power (1.5W per end).
Q: Is MCA4J80-N005 compatible with Ethernet switches?
A: Yes, the ACC firmware automatically detects InfiniBand or Ethernet protocol and configures accordingly. It works with Spectrum-4 Ethernet switches.
Q: What is the maximum length for this ACC series?
A: 5 meters (MCA4J80-N005). For lengths up to 2m, use passive DAC (MCP4Y10 series) for lowest power. For lengths beyond 5m, consider AOC or optical transceivers.
Buyer Checklist
- ✓ Required length: 3m, 4m, or 5m – ACC is optimal for distances beyond 2m up to 5m
- ✓ Connector type: finned for standard air-cooled switches; flat or flat-to-finned for DGX H100
- ✓ Protocol: InfiniBand or Ethernet – MCA4J80 auto-detects, no configuration needed
- ✓ Power budget: 1.5W per end – ensure switch can provide sufficient per-port power
- ✓ Cable management: Verify assembly space (156mm for combined end) fits rack door clearance
- ✓ Environmental: Confirm operating temperature range 0-70°C meets data center requirements
